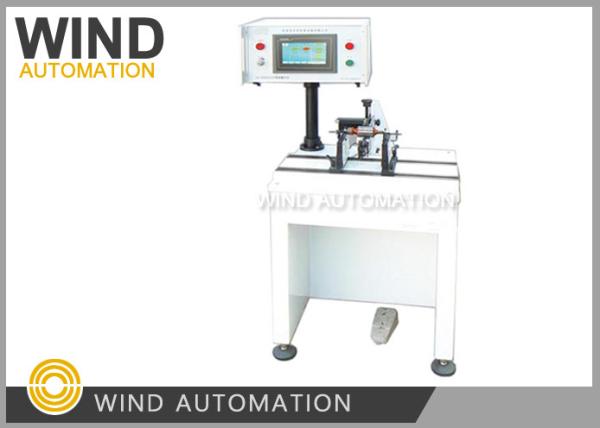

Automatic Dynamic Armature Rotor Adding Weight Compound Balancing Machine WIND-DAB-5Z
Armature Dynamic Balancing Machine Advantages:
1.No need to mark in armature (such as reflective sheet, black mark and so on)
2. Imbalance point positioning automatically
3. Low operation skill requirement to staff
4. Reduce the complexity of the machine operation
Automatic Dynamic Armature Rotor Adding Compound Balancer Parameter:
1. Balancing rotation speed: 900~5000r/min (resolution: 10 turns)
2. Imbalancing value:0.3g.mm/kg
3. Weight of workpiece: 0.1-1.6kg
4. OD of workpiece: ≤∮200mm
5. Shaft O.D of workpiece: ∮2.17-∮25mm
6. Lamination of workpiece: 10—200mm
7. Driving mode: belt
Instruction for Use:
Step 1: Machine measure armature’s imbalance automatically,
display the imbalance of each side on touch screen.
Stop at adding weight point (left) automatically, finish adding manually,
Step 2: Foot press to change to the next adding weight point (right),
finish adding manually, test again,
and complete balancing adjustment.
Step 3: Take out well-balanced armature,
Balancing Machine Trouble shooting
Question and Answer:
1. Why the balancing of armature take 7 minutes?
Your video of operation was checked, please check below our comments and suggestion,
1. The method you operate is right by adding compound to one place on left side and right side,
and it takes several times by adding which makes the operation cost much time
2. Could you please send me the drawing of your armature and screens of your machine for us to
check the a,b,c value and setting is right ?
In actual operation balancing machine users don't use weight to measure the compound, they just feel
and add with experience.
2. Armature has a lot of unblance is not possible to get it in balance?
Your videos of balancing machine problem were checked,
1). Did you do remove weight balancing for the fan before amature balancing,
We suggest you remove weight of fan for balancing(drill hole on fan?) before you adding weight to armature
2). Please pay attention to the manufacturing process before balancing,
make sure lamination core without eccentricity, shaft no vibration, powder coating evenly, winding in a good way,
In total, the lamination surface runout need to be good,
The machine can show 4000mg, it is 4g, but it is better to let it do unbalancing below 1000mg
3). Please check your Adding weight compound, you may choose the one with more specific gravity,
Then with same space, it can acquire more weight
Please verify from the three aspects,
3.Is there any Max value of unblance in Armature that the machine can not handle?
Yes, the balancing machine WIND-DAB-5Z is suitable for small mimi armature balancing,
on machine Max value showed is 4000mg,
So when the unbalance value is above 4000mg,
for example 4050mg, 4200mg, they don't change the measuring result, right?
Once the unbalance value is below 4000mg, it will change,
So please add more compound if the result is over 4000mg,
Please click below picture to view automatic dynamic armature balancing video
